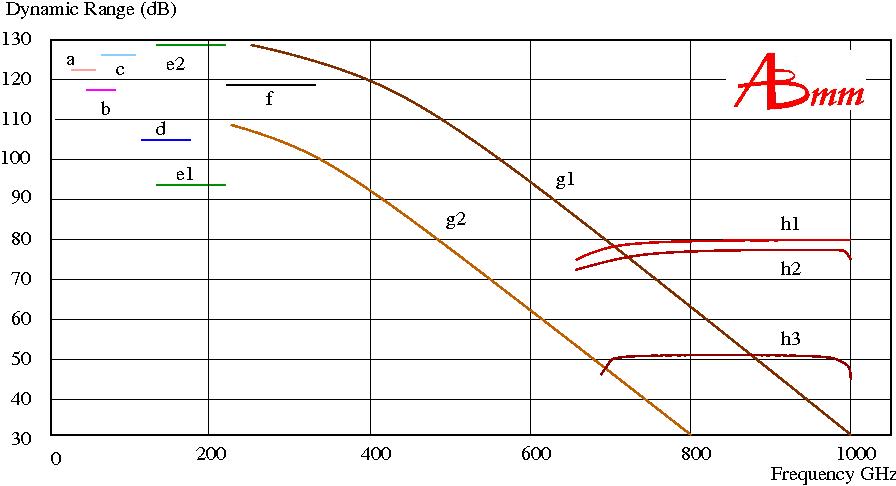

The dynamic range of MVNA

The dynamic range of MVNA shown for various system configurations.

  1. Flat Broadband millimeter heads below 75 GHz.
  2. Flat Broadband millimeter heads between 71 and 111 GHz.
  3. D band, with FB heads HG-D-FB and HM-D-FB, between 110 and 170 GHz.
  4. Flat Broadband Source HG-wr5.1-FB, detected with HM-D-FB.
  5. Flat Broadband Source HG-wr3.4-FB detected with HM-D-FB.
  6. W-band Fundamental mixer FM-W-FB and two sources HG-W-FB (one of which is used as the local oscillator for FM-W-FB).
  7. ESA-0-FC W-band tunable Gunn oscillator source with HM-W-FB detecting head.
  8. ESA-0-FC W-band tunable Gunn oscillator source, or ASA-1-FC extension without the tunable multiplier TMU, with FM-W-FB fundamental mixer detector head and with the second source HG-WB-FB as the local oscillator of FM-W-FB.
  9. Tunable millimeter heads HG-wr6 and HM-wr6 between 100 and 430 GHz.
  10. Extension ASA-1-FC with a simple HM-D-FB detection head.
  11. Extension ASA-1-FC with HM-wr6 tunable detection head.
  12. Extensions ASA-1-FC and ASA-2-FC.
  13. Extension ASA-2-FC detecting dedicated frequency multiplication chains.
