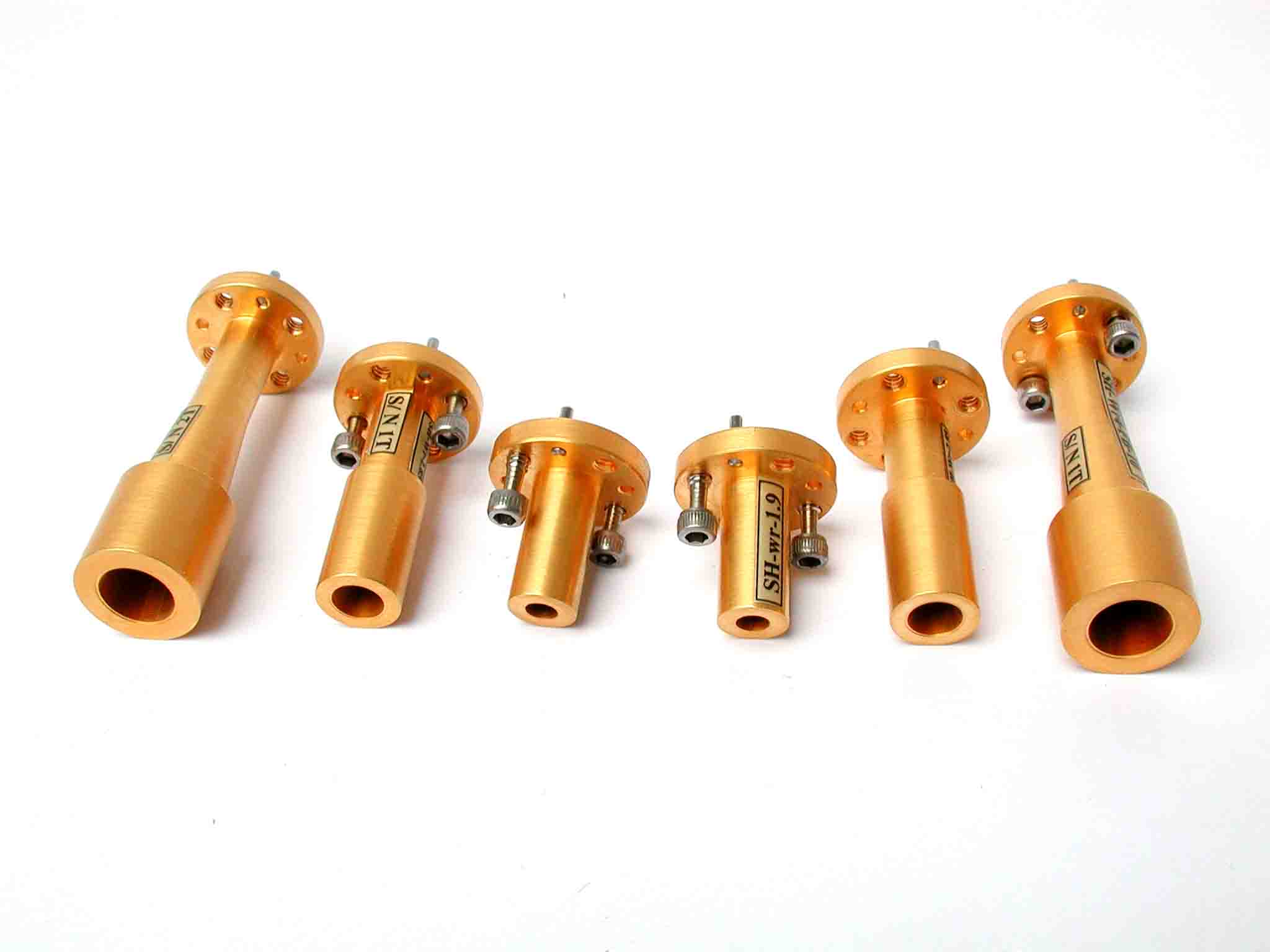

Picture 24: Scalar horns for millimeter wave bands.

Scalar, corrugated horns

Scalar (corrugated) horns shown, from outside to the center, for the frequency ranges: 170-260 GHz, 260-400 GHz, and 400-600 GHz. Corresponding waveguide standards are: WR-4.3, WR-2.8, and WR-1.9.
