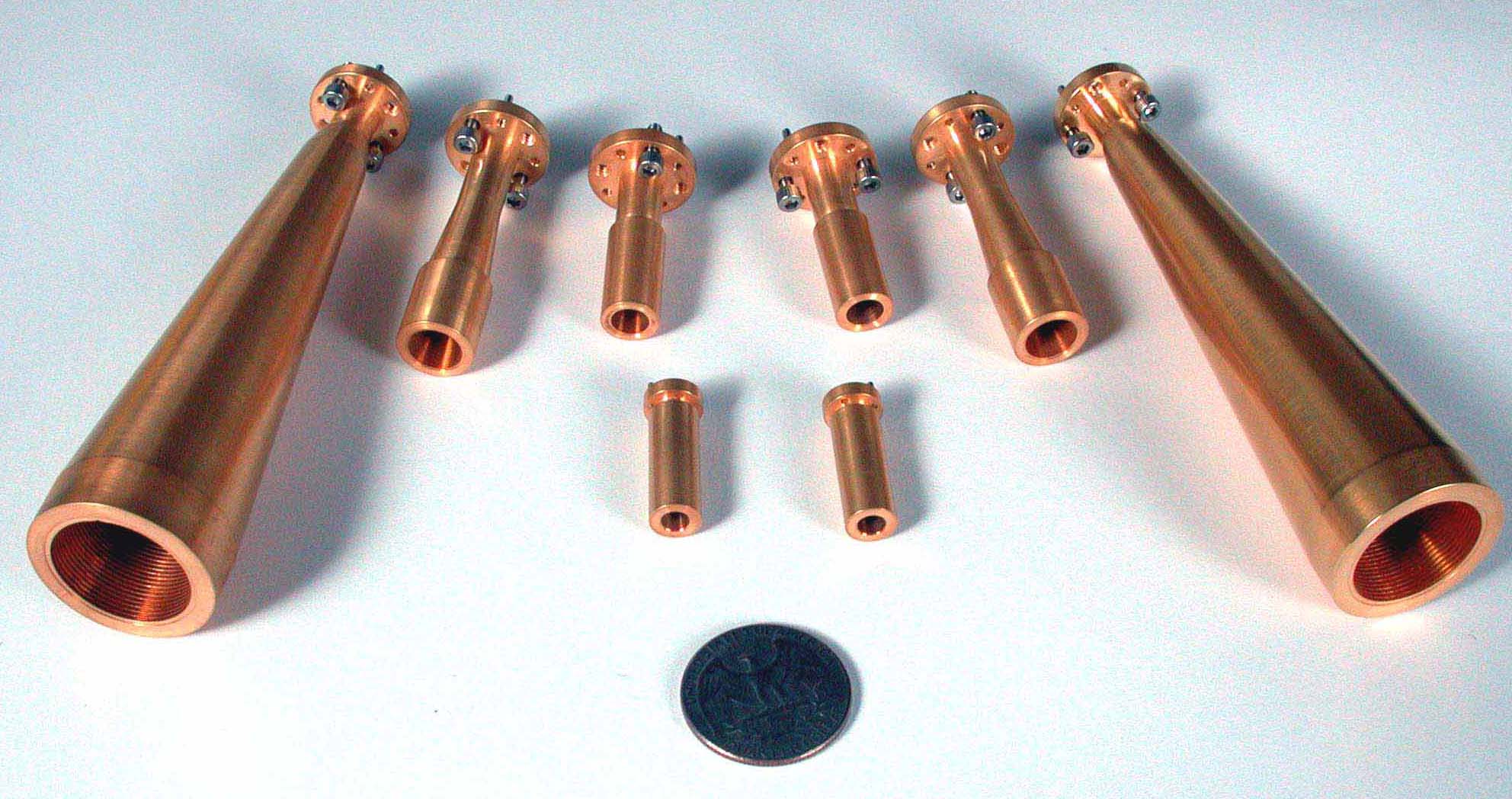

Picture 25: Scalar horns for W band and higher frequencies.

Scalar horns for W band and higher frequencies

These horns cover the ranges: 75-110 GHz (W-band, waveguide WR-10), 160-224 GHz (waveguide WR-5), 230-345 GHz (waveguide WR-3), and 345-530 GHz (waveguide WR-2.2). The 25 cents coin (diameter 24 mm) gives the scale.
